Product performance
-

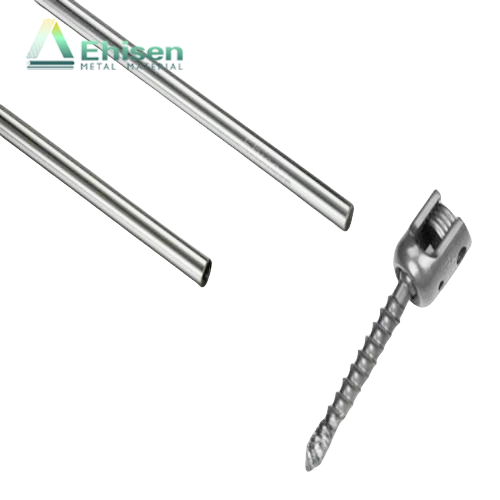

Name:Medical titanium bar
-
Raw materials:Use grade 0 sponge
-
Melting:After three times of vacuum melting by VAR (vacuum consumable arc melting method);
-
Standard:ASTMF67,ASTMF136,ASTMF1295
-
GradeGr1,Gr1ELl,Gr2,Gr3,Gr4,Gr5,Gr5ELI
-
Tolerance:100% infrared one-by-one diameter measurement,ensuring that the diameter tolerance can reach h9,h8,h7,h6 levels;
● Surface:polished
● Straightness:can reach 0.3‰-0.5‰
● Flaw detection:100% ultrasonic/eddy current flaw detection to ensure that there are no metallurgical defects and non-metallic impurities on the surface and inside
● High magnification structure:The high magnification of TC4 rods with a diameter of less than 20mm can be stably controlled at A1-A3,and the high magnification of TC4 rods with a diameter of 20-65mm can be stably controlled at A1-A5.
Chemical compositions
|
Chemical compositions |
||||||||
|
Grade |
Ti |
Al |
V |
Fe,max |
C,max |
N,max |
H,max |
O,max |
|
ASTMF136 |
Bal |
5.5~6.5 |
3.5~4.5 |
0.25 |
0.08 |
0.05 |
0.012 |
0.13 |
Mechanical properties
|
Mechanical properties |
|||||
|
Grade |
Diameter (mm) |
Tensile Strength (Rm/Mpa) ≥ |
Yield Strength (Rp0.2/Mpa) ≥ |
Elongation (A%) ≥ |
Reduction of Area (Z%) ≥ |
|
ASTMF136 |
<44.45 |
860 |
795 |
10 |
25 |
|
ASTMF136 |
44.45-63.5 |
825 |
760 |
8 |
20 |
|
ASTMF136 |
63.5-101.6 |
825 |
760 |
8 |
15 |
Size review before shipmen
Customer's Feedback
Ehisen medical titanium rod testing equipment
Ultrasonic flaw detection checks inner defects below 3mm;
Surface defects larger than 3 mm are probed by the turbine detector.;
Infrared detection apparatus measures the whole bar diameter from top to bottom.
FAQ
Q: What are the applicable symptoms for medical titanium bar?
Q: How should medical titanium products be maintained during surgery?
