Product introduction

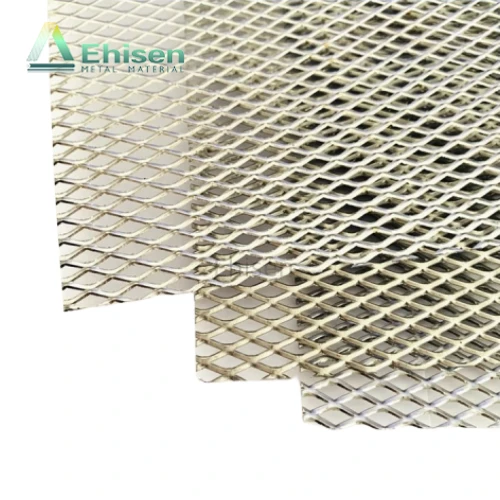

Mesh titanium is a general term for pure titanium processed into mesh products, which is made of titanium plate or titanium coil, cut and stretched by automatic mesh expanding machine to form a metal mesh with uniform diamond-shaped openings.
Ehisen Product parameter
Mesh size
Substrate (titanium plate thickness) 0.3~0.5mm
It can be mesh size:3.5*6mm, 3*6mm, 3*4mm,2.5*4mm,2*3mm,1.5*3mm,1*2mm
Mesh size
Substrate (titanium plate thickness) : 0.5~2.0mm, can be mesh size：10*20mm,7*13mm, 6.35*12.5mm,6*12mm, 5*10mm,4*8mm,3.5*6mm,3*6mm
Product Categories
According to the production process is divided into three categories
01
Braided mesh titanium
02
Punched titanium mesh
03
Titanium fog removal mesh
Braided mesh titanium
Woven net, is a pure titanium wire woven production, there are plain, twill, Zhu, dense pattern and other types.The plain, twill and vermilion filter units are square or rectangular,main specifications such as 1 mesh,2 mesh,10 mesh,40 mesh,60 mesh,100 mesh,150 mesh.
The dense-grained titanium mesh filter unit is the inner tangent circle diameter of the Angle between the warp and weft titanium wire.The main specifications are 12*64mm, 20*110mm, 8*85mm,12*90mm.
Mainly used in seawater filtration, chemical pharmaceutical filtration,medical filtration,electrolytic cell titanium anode.
Punching mesh
Punching mesh is produced by punching pure titanium plate, and titanium anode is commonly used as punching mesh.The aperture is round,square,triangle or other special-shaped holes,diamond-shaped relative to the woven titanium mesh, punching titanium mesh has the advantages of short production cycle,low cost,high strength,good flatness and so on.
The main specifications are: round hole: plate thickness 2.0mm aperture 3mm,plate thickness 1.5mm aperture 1.5mm;plate thickness 1mm aperture 1mm;
Diamond hole：0.5*0.8mm;0.8*1.5mm;1*2mm;2*4mm;3*6mm;5*12mm.
It is often used as filter plate,chemical tower support plate, ion membrane electrolytic cell electrode,battery flow collection network and so on.
Titanium fog removal mesh
Titanium fog removal mesh is produced by pure titanium wire knitting, which can effectively remove 3--5um fog droplets,Mainly used in tower packing, gas-liquid separation, removal of liquid droplets in the air flow, filter out small liquid droplets.
It is used to separate the liquid droplets entrained by gas in the tower to ensure mass transfer efficiency, reduce the loss of valuable materials, improve the operation of the compressor after the tower, and reduce the water content, which is generally set at the top of the tower
The difference between a flat net and a standing net
Flat net
The thickness of the stamped mesh is consistent with the thickness of the substrate.
Net erection
The size of the mesh and stem determines the thickness of the net erection.
Mmesh titanium can be used for processing: titanium anode substrate, cathode, titanium mesh basket, etc.
