Products Description

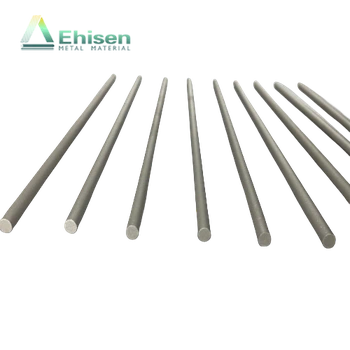

Platinum plated titanium rod:

titanium as the substrate,the surface is plated with precious metal platinum,the platinum coating structure is dense,the appearance is bright silver white,with high anode discharge current density, long service life and so on.

Platinum plating on titanium substrate is the best choice for precious metal plating anode.

Product parameters

Substrate	Gr1,Gr2 pure titanium
Shape	Plate,mesh,tube,wire,rod,etc.Diversified in shape and anodes can be customized
Coating	Ruthenium-Iridium coating,Ruthenium coating,Ru Ir Sn coating
Coating Technology	Sandblasting or acid washing Brushing and oxidation
Working parameters	Current density ≤ 2000A/㎡ Temperature <60℃ Fluoride ion maximum content of 200PPM
Applicable electrolytes	More Cl- in the electrolyte,or the main reaction is the production of chlorine gas during electrolysis
Features	1 High electrocatalytic activity 2 High current efficiency and energy saving 3,High erosion resistance 4 Dimensional stability 5 The substrate is reusable 6 Economical and maintenance-free 7 High purity in the production of positive electrode materials
Packaging	Inner layer is foam or paper,outer layer is carton or plywood box

product process

Ⅰ.Substrate treatment:

Roughing,cleaning and degreasing are required and can increase the density of the catalyst.

Ⅱ.Brushing:

After the base layer treatment is finished,the brush coat treatment is applied.(The main component of the coating is platinum group metals,which is a mixed solution).

Drying process after brushing and heat treatment after drying.

Note: The whole process needs to be repeated several times,and the method works better for the formation of thin oxide catalysis,i.e., layered adhesion to the substrate surface.

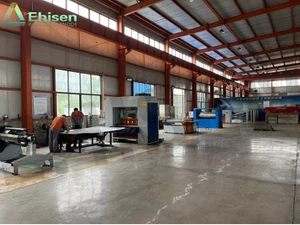

Metal net puller machine

Solution ratio laboratory

Brush and dry treatment

Working conditions of platinum plated titanium anode

►Working conditions of platinum plated titanium rod

►Platinum layer thickness:0.5 µm to 25 µm.

►Maximum size of expanded mesh and sheet:1250mm*1000mm² .

►Operating current range:<10000A/m²

►Temperature range:<80℃

Application areas of platinum plated titanium rod

Platinum plated titanium rod is widely used in the following fields: non-ferrous metal production and recycling, electrolytic production of high-purity metals; electroplating; electroplating solution wastewater treatment; electrochemical synthesis: cathodic protection, etc.

Ehisen's platinum coated titanium rods inspection

Platinum Plated Titanium Rod Inspection1

Platinum Plated Titanium Rod Inspection12

platinum-coated titanium rod inspection

Platinum Plated Titanium Rod Inspection3

Coating inspection method

Test items	Test Conditions	Eligibility conditions
Binding test	3M tape	No black marks on the tape
Binding test	Bend 180° on OD12mm round shaft	NO peeling at the bend and No peeling
Coating thickness	X-ray fluorescence spectrometer	0.1-15μm
Uniformity Test	X-ray fluorescence spectrometer	≤15%
Coating purity	ICP (Inductively Coupled Plasma) Spectrometer	≥99.5% (electroplate) ≥98.5% (brush plating)
Coating Thickness Tolerance	X-ray fluorescence spectrometer	Example: 2.0μm±0.2μm (electroplate) 2.0μm±0.6μm (brush plating)
Chlorination potential	2000A/m², saturated NaCl, 25+2°C	<1.15V
Analyze chlorine polarizability	200/2000A/m², saturated NaCl, 25+2℃	≤40mV
Extended service life	40000A/m²,1mol/LH₂SO₄,40+2℃	≥2150h(1μm)
Enhance weightlessness	20000A/m², 8mol/L NaOH, 95+2°C,electrolysis 4h	≤10mg

Product inspection photo comparison

Comparison of Platinum Plated Titanium Rod from different manufacturers

Our platinum coated titanium rods

Visually inspect the surface for smoothness and observe the coating using SEM magnification.The thickness is uniform,the bonding force is good,and the product surface is smooth.

Comparison of Platinum Plated Titanium Rod from different manufacturers2

Other platinum coated titanium rods
Visually inspect whether the coating is peeling off and observe the coating using SEM magnification.The thickness is uneven,the bonding force is not good,and the surface of the product is rough.

Advantages of Ehisen

Our company utilizes a power supply that is specifically tailored to the wire diameter and rigorously regulates the current and electroplating time.
Our production lines consist of surface treatment,passivation,electroplating, and cleaning processes.
The resulting platinum coated wire boasts even coating thickness,excellent adhesion, and high coating purity.
